Automation and MCP

Kandev has several mechanisms that can act without repeated manual setup. Their scopes and trust boundaries differ:

Use workflow events for predictable transitions on existing work. Use a workspace automation when an external signal must create new work. MCP is a tool interface, not a scheduler.

Across Kandev's task, configuration, external, and Office MCP modes, each tool call is validated against that mode's live tools/list schema before its handler runs. Missing required fields, wrong types, declared constraint violations, and unknown top-level fields return a tool error without performing the requested action. A missing-field error names each absent schema property, but never echoes submitted argument values. Nested configuration maps still accept arbitrary keys when their schema defines them as open.

Quick path

• Use a workflow event for predictable transitions on existing tasks.
• Use a workspace automation when a schedule or external signal should create work.
• Use task MCP for tools inside an active agent session.
• Use workspace MCP to configure reusable servers and select their scope.
• Use external MCP to expose Kandev tools to third-party clients.
• Treat credentials delivered through any MCP or executor profile as available to the receiving agent.

Workflow events and human gates

Regular workflow entry actions can enable plan mode, reset agent context, or auto-start an agent; auto-start can use the step prompt or a stored prompt override. Turn-start and turn-complete events can move the task, while turn-complete and step-exit actions can disable plan mode. There is no regular standalone stop agent or send prompt workflow action. Approval/review steps and steps without automatic start remain the supported human gates. Inspect events on both the source and destination step before enabling a move or automatic start; otherwise two steps can form a loop.

See Tasks and workflows for event configuration and defaults.

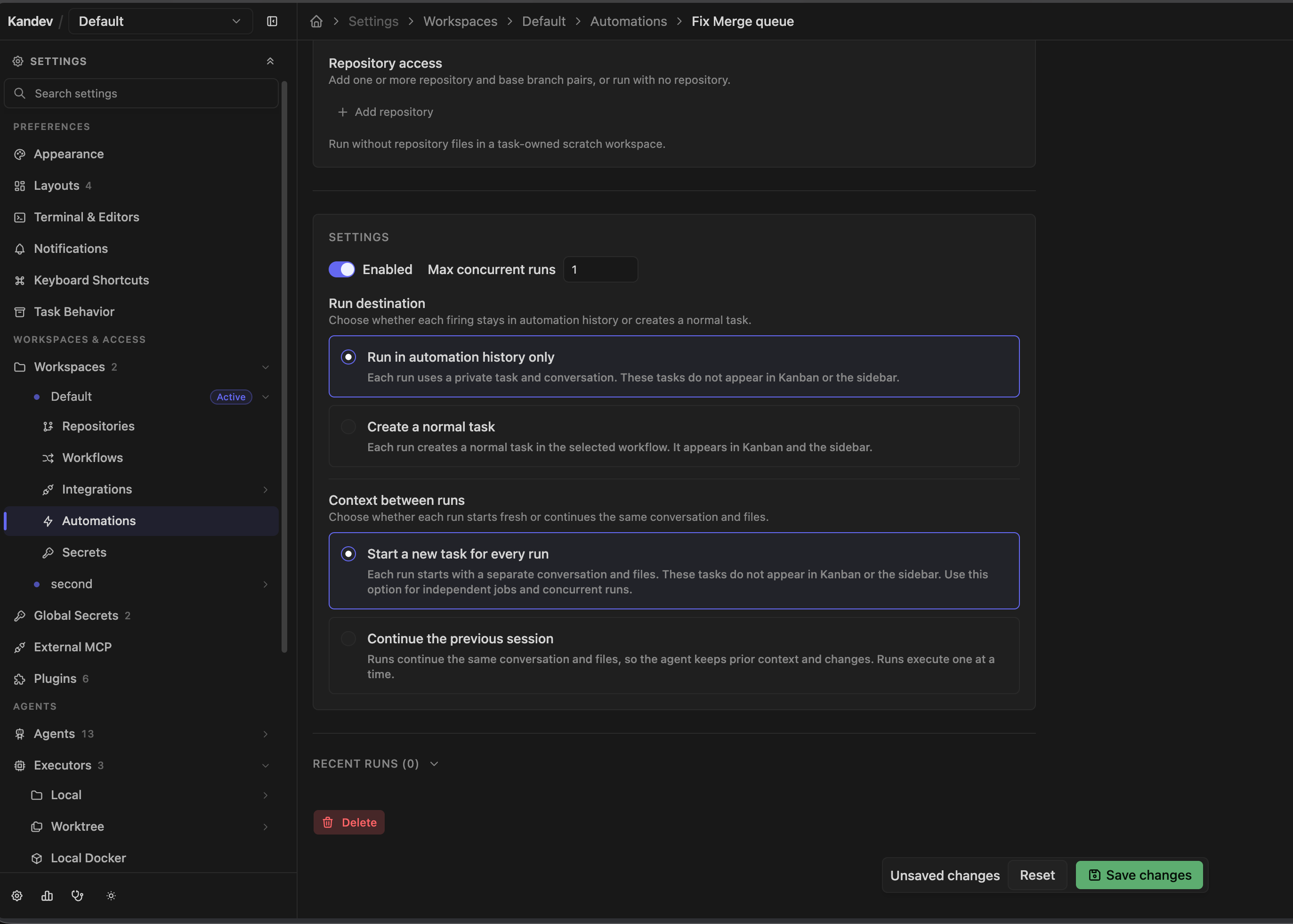

Create a workspace automation

Open Settings > Workspaces > Workspace > Automations (/settings/workspace/{workspaceId}/automations) and select New Automation. The top-level /settings/automations route redirects to, or asks you to select, a workspace.

1. Enter a required name and optional description.
2. Select an agent profile and executor profile. Passthrough profiles are not offered. Worktree and Local-compatible profiles can run without a repository in a task-owned scratch workspace.
3. Choose the run destination:
   • Run in automation history only keeps each generated task out of Kanban and the sidebar. Workflow selection is optional.
   • Create a normal task creates ordinary workflow work that appears in Kanban and the sidebar. A workflow is required; an empty starting step uses that workflow's configured starting step.
4. Add one or more repository and base-branch pairs, or leave the list empty. The selector is the same searchable paired-chip control used by New Task. A discovered repository is registered in the workspace when the automation is saved. An empty list uses a task-scoped scratch workspace and does not create a Git worktree. Kandev never selects the workspace's first repository for you.
5. Enter a prompt and optional task-title template.
6. Choose Context between runs:
   • Start a new task for every run creates a separate task, conversation, and task environment for each firing. In the hidden destination, those tasks do not appear in Kanban or the sidebar; in the normal-task destination, they do.
   • Continue the previous session reuses one task, primary session, conversation, and worktree across firings. The destination and exact repository/base-branch pairs remain part of continuation compatibility.
7. Keep the default maximum concurrency of 1 unless parallel work is safe. Reused sessions always use one active run.
8. Choose a schedule and optional GitHub condition, or switch to webhook mode.
9. Save, use Run now on the automation's page, then read what it said before widening credentials or scope.

The form can save an empty agent or executor selection, but launch still needs a usable profile. Scheduled, manual, webhook, and provider-triggered runs can remain repository-free. When a provider event supplies an exact repository through its established contract, Kandev uses that event context. A GitHub pull-request run with configured repository access checks out that PR's head branch and uses its base branch.

What a firing produces

Every firing produces a distinct AutomationRun with exact task, session, and turn identity. A hidden destination uses origin = automation_run; that origin, not is_ephemeral, keeps its persistent task out of Kanban and task lists. A normal-task destination uses a separate visible automation origin, enters the selected workflow at its configured start step, and follows the ordinary task lifecycle. The workflow selector shows the same ordered step preview as New Task; automations do not have a separate step selector. The trigger is the start signal, so the agent starts immediately rather than waiting for a workflow step's auto_start_agent action.

With Start a new task for every run, each firing gets its own task, primary session, worktree or scratch workspace, and conversation. With Continue the previous session, the first firing creates one task and later firings send a new turn to its primary session. Kandev does not reset or rebase a reused checkout. If the saved task, session, runtime, or task environment is missing or incompatible, the firing creates a replacement thread and records that action on the run. A reused task keeps its creation title; each run keeps its own rendered display_title snapshot.

A finished run parks in WAITING_FOR_INPUT rather than COMPLETED, so you can reply to it and the agent continues in the same session and worktree. A run is a thread, not a receipt. Worktrees are retained for the ten most recent finished task IDs of each automation and reclaimed beyond that, so an older run stays readable but can no longer be answered.

The run destination and ordered repository/base-branch pairs are explicit saved settings. Existing empty repository selections migrate to scratch execution; there is no workspace-default fallback. Existing selected repositories use their configured default branch until the automation is saved with an explicit branch. Changing the destination, workflow, repository pairs, or runtime profiles replaces an incompatible reusable continuation on its next firing. Visible automation tasks survive automation deletion; hidden tasks use the automation cleanup lifecycle.

Selecting a run opens the complete shared transcript and focuses its exact turn. Replies sent from that transcript create a new turn in the same conversation and remain visible; run selection does not filter away newer replies.

A run cannot wait for a permission response. Kandev rejects the request and marks the run failed. Use only a profile whose intended, constrained actions can complete without a prompt.

Trigger behavior

The editor has two exclusive layouts:

• Scheduled: one schedule plus at most one GitHub condition;
• Webhook: one authenticated webhook trigger. Switching to webhook deletes the schedule and condition, and switching back deletes the webhook trigger.

In the current backend, the schedule and GitHub PR condition are independent triggers. A non-empty schedule creates generic scheduled runs, while the PR trigger separately polls GitHub. Adding a PR condition does not constrain the scheduled run. Clear the schedule expression if the automation should run only for matching PRs.

Schedule

The scheduler checks every 30 seconds and computes each expression's next calendar fire time in its configured timezone. A schedule created part-way through the day first fires at its next scheduled occurrence after creation (not immediately). A schedule missed while the backend was stopped fires once on the next check rather than once per missed occurrence.

Use the supplied presets: every 5, 15, or 30 minutes; hourly; every 6 hours; daily; or weekly. The backend also accepts @every followed by a Go duration, @hourly, @daily, @weekly, and step forms such as */10 * * * * or 0 */6 * * *.

The editor accepts arbitrary five-field cron text, including fixed calendar forms such as 30 8 * * *, weekday ranges such as 15 9 * * 1-5, and day-of-month schedules, all of which now fire at the correct time. A saved timezone (for example America/New_York) is honored, including that zone's daylight-saving transitions; an empty timezone means UTC, so schedules are deterministic regardless of the host clock. Scheduled runs are deduplicated per trigger per minute.

GitHub pull requests

The GitHub evaluator polls every 60 seconds and requires a working GitHub integration. It searches open PRs and supports:

• an explicit list of repositories;
• base-branch glob filters, including * and a trailing wildcard such as release/*;
• exact author-login filters;
• draft exclusion.

Select at least one repository. Although the UI offers All repos, an empty repository list is not evaluated, so it produces no PR runs. The editor exposes only the Opened event, but the evaluator currently ignores the saved event list: clearing that checkbox does not stop polling or firing. Disable the automation/trigger instead. The first evaluation considers every currently open matching PR rather than only PRs opened after the automation was enabled. Each matching PR is then deduplicated once per automation by repository and PR number.

The current evaluator does not apply label filters, and the current form does not offer them.

GitHub pull requests merged

The Pull request merged condition watches pull requests linked to tasks in the automation's workspace. Select All repositories or an explicit repository list, then optionally filter by the pull request's base branch (for example main or release/*). Kandev uses the existing GitHub PR poller, so a merge can take up to one minute to be noticed. There is no backfill sweep when you create or enable the condition: it fires on the first qualifying github.task_pr.updated event. Linking an already-merged PR, or a later sync that changes a merged PR row, can therefore qualify that task once.

Each firing creates a hidden automation run task and carries the linked task id as {{data.task_id}}. The default prompt asks the agent to call archive_task_kandev for that task. The backend also binds the run to the event-selected task, so a missing or different archive target is rejected before any task is changed. An already archived target is safe and reports already_archived.

The merge is deduplicated per automation, task, repository, and pull-request number. A concurrency-cap skip or a failure before a task is created does not consume that key, but there is no durable retry queue; another PR update must arrive for it to be tried again. Run now creates a manual run without a linked task id, so it tests the automation but does not replay a missed merge.

GitHub push and CI checks

Push and CI-check conditions are webhook-driven rather than polled. They require a workspace GitHub App connection (Settings > Workspaces > workspace > GitHub) whose installation is subscribed to the push and check_run events. When the App delivers a matching, HMAC-verified webhook, the installation is resolved to its workspace and the matching automation fires.

• Push: fires when commits are pushed to a matching branch. Configure an explicit repository list and optional branch glob filters (main, release/*). Branch deletions are ignored. Deduplicated per repository by branch and pushed commit SHA.
• CI check: fires when a check run completes. Configure an explicit repository list, the conclusions to match (defaults to failure, which drives auto-fix-CI flows), and optional check-name and head-branch filters. Deduplicated per repository by check-run ID.

Because GitHub Apps only deliver events a user subscribed to at installation time, an App connection created before push/CI support was added must be reinstalled (or updated from its GitHub settings page) before these webhooks begin arriving. This generic CI trigger is distinct from the task-specific PR check remediation described under review features.

Webhook

After creating a webhook automation, copy its URL and one-time displayed secret. The edit page can reveal the secret again.

Send:

POST /api/v1/automations/webhook/{automationId}
X-Webhook-Secret: <secret>
Content-Type: application/json

Kandev silently reads only the first 1 MiB of the request body; it does not reject an oversized body. If that retained prefix is valid JSON, it becomes trigger data. Empty or invalid JSON is wrapped as {"body":"<raw text>"}. The endpoint returns 401 for a wrong secret, 404 for an unknown automation, and 409 when the automation or its webhook trigger is disabled.

Webhook delivery has no event deduplication or filter-expression evaluator. Make downstream actions idempotent when the sender retries. The secret is stored with the automation rather than in Kandev's encrypted provider-secret store, and anyone with Kandev settings access can reveal it. Treat it as a credential, use TLS, keep it out of URLs/logs, and replace the automation if rotation is required.

Manual trigger

Run now on an automation's page and the play action in the settings table fire a run with trigger type manual and no deduplication. Use either action to test repository/profile resolution and read what comes back.

A trigger can succeed and still run nothing. A disabled automation, an already-fired dedup key, or a concurrency cap that is already reached all report skipped with the reason rather than claiming a fire. A cap skip writes a run row so the history explains itself; a disabled automation does not, since nothing was ever going to run.

Prompt and title placeholders

Every trigger supports {{trigger.type}}, {{trigger.timestamp}}, and {{data.<path>}}.

GitHub PR runs additionally support {{pr.number}}, {{pr.title}}, {{pr.url}}, {{pr.author}}, {{pr.repo}}, {{pr.branch}}, {{pr.base_branch}}, and {{pr.body}}.

Webhook runs support {{webhook.body}} and {{webhook.<path>}}. Dot segments traverse nested objects, and a numeric segment indexes an array, for example {{webhook.commits.0.message}}. Scalar values are converted to text; objects and arrays become JSON. Missing or unresolved placeholders are removed rather than sent literally.

Trigger payloads are untrusted input. Do not let a PR body or webhook field silently choose credentials, repositories, shell commands, or a production target.

Read what an automation has been doing

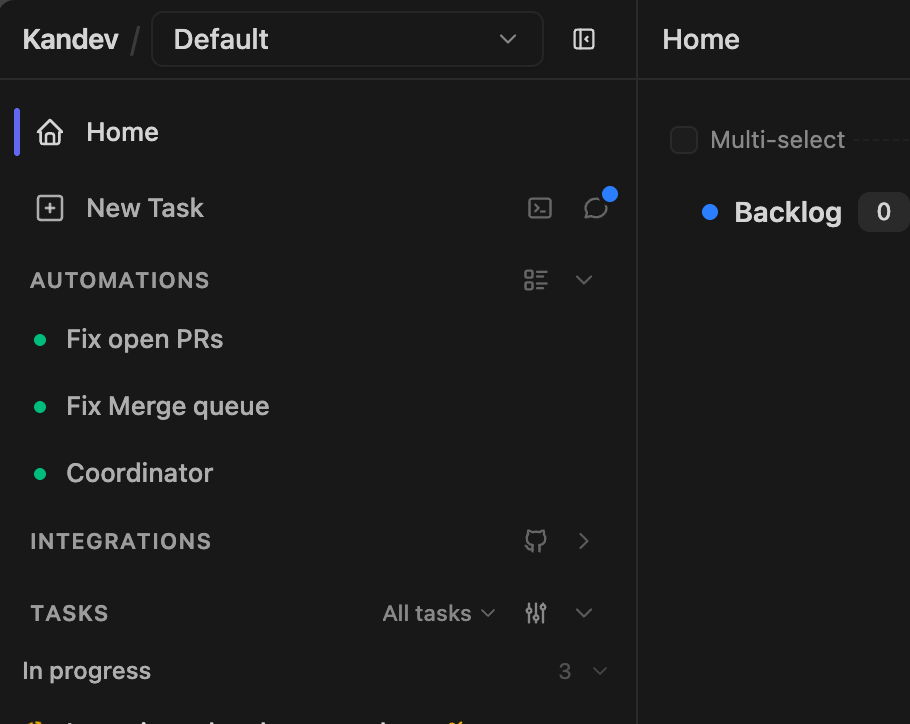

Automations in the sidebar lists the workspace's automations with a health dot. Picking one opens it. /automations is the agenda across all of them, what fires next, and the recent runs of every automation in one feed. /automations/<id> is one automation's conversation: it opens on the newest run's transcript, carries the run's title snapshot and a reply box, and groups runs as Running / Completed in a rail or mobile drawer. A selected open run exposes Stop current run, which cancels its exact task, session, and turn without touching another run in a shared session. Configuration is behind Details, because an automation is configured once and read continuously.

/runs still resolves to the same places, so older links keep working.

Concurrency, history, and cleanup

Maximum concurrent runs defaults to 1 and cannot be less than 1. An admitted triggered run and a bound task_created run are both open until their exact turn is settled. A run counts as active while its task is neither deleted, archived, nor explicitly cancelled, the same definition the UI uses when it says an automation will not fire because a run is still open, so the reason shown and the cap causing it cannot disagree. reuse_thread requires max_concurrent_runs = 1. When the cap is reached, Kandev records a skipped run and advances the schedule's evaluation time rather than retrying every 30 seconds.

Run history can report triggered, task_created, succeeded, failed, skipped, archived, or cancelled. triggered means that admission succeeded but task/session/turn binding is not complete. The last two are derived at read time, not stored: a task_created run whose task was deleted or whose primary session was cancelled reads as cancelled, and one whose task was archived reads as archived. That derivation is defined once and shared by every view, so two surfaces cannot disagree about the same run.

A run that produced a task opens its conversation. A run that never produced one (a skipped firing) is listed but inert; there is nothing to read.

Deleting one run also deletes its associated task when no other automation run references it. Delete all runs deletes all now-unreferenced associated tasks and history for that automation and is irreversible. Automation deletion captures referenced hidden tasks in durable cleanup jobs and retries task/worktree cleanup after the database deletion if necessary.

Continuation and fallback history

Native session continuation and provider-managed compaction remain authoritative for a healthy reusable session. If Kandev must synthesize a non-native resume prompt, it includes only the newest 50 non-empty user_message and agent_message entries, returned in chronological order and truncated per message. Tool calls, tool results, status events, and unknown event types do not appear and do not consume slots. The current firing prompt is added outside that 50-message window. Durable session history is not rewritten.

Automation coordinator MCP

Automation sessions receive one fixed, workspace-scoped coordinator MCP surface. The server resolves the trusted automation principal before dispatch and uses that principal for workspace, caller task, caller session, surface, and audit identity; a prompt or tool argument cannot forge those values. The catalog includes coordination and pending-question or permission actions needed by an automation, but excludes task deletion, configuration mutation, task-local authoring, provider PR/MR actions, diagnostics, plugins, and arbitrary capability settings.

The automation's own hidden task and every session on it are invalid targets for messaging, stopping, spawning, and blocker discovery or resolution, and for every mutation except archiving. An automation can archive its own hidden task; that is its normal end-of-run completion signal, not a self-mutation. Foreign-workspace targets return the same not-found result as unknown targets. The archive exemption covers only the automation's own hidden task; sessions on it remain invalid targets. A task spawned on another allowed task receives that target task's normal MCP profile and never inherits the automation surface. Reused worktrees are not reset or rebased by coordinator actions.

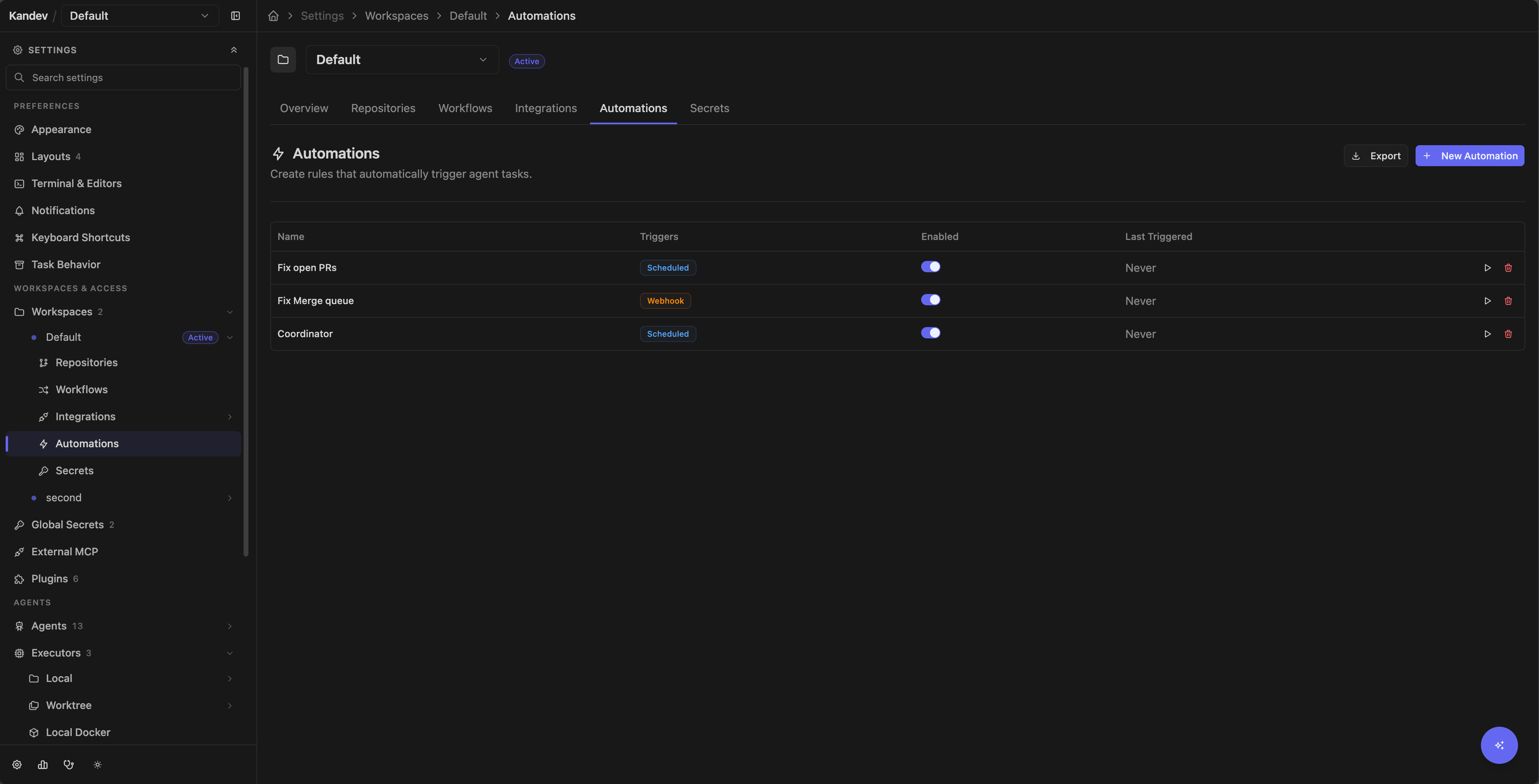

Export automations

The automations settings page (Settings > Workspaces > Workspace > Automations) has an Export control next to New Automation. It downloads every automation in the workspace as a zip, one YAML file per automation at .kandev/automations/<slug>.yml, ready to read, diff, or check into a repository. A workspace with no automations still downloads a (empty) zip rather than showing an error.

The same data is available directly over REST for scripting: GET /api/v1/workspaces/:workspaceId/automations/export returns one YAML document (application/yaml) listing every automation, and GET /api/v1/workspaces/:workspaceId/automations/export/zip returns the same per-file zip the UI control downloads (application/zip). Both are read-only and deterministic: exporting an unchanged workspace twice produces byte-identical output. A workspace you cannot access and a workspace that does not exist both return 404 with no distinguishing detail; any other failure returns 500.

Workspace MCP

Workspace MCP definitions are reusable, workspace-owned server configurations. Open Settings > Workspaces > workspace > MCP servers to use the Configured and Marketplace views. This page manages MCP servers that Kandev delivers to agents. External MCP is separate and exposes Kandev's own MCP endpoint to outside clients.

Add a custom definition as a remote endpoint, an exact-version managed npm package, or an existing executable. Bind secrets by workspace-secret reference. Saving a definition does not download, connect to, or start a server. Managed npm packages are materialized lazily in a Kandev-owned task-executor cache and do not change repository files or lockfiles.

Marketplace entries come from Kandev-curated templates or cached public Registry metadata. Registry metadata is publisher supplied, not a Kandev security review. Review the publisher, selected remote or exact package version, transport, requested configuration, and secret bindings before adding an entry. A Registry outage shows the last successful cache with a stale or degraded status. Deprecated and deleted entries are not offered for new installation.

Select configured definitions at the profile, repository, task, or task-session scope. Repository selection is collapsed by default. Task creation keeps its selector inside collapsed Advanced settings. The effective set is additive across every task repository, the workspace-contextual profile, task, and session. Duplicate definitions are delivered once with all contributing origins; inherited definitions cannot be removed at a narrower scope.

An active turn keeps its current MCP list. Existing task sessions save a desired revision and apply it after the turn becomes idle. Providers that advertise safe ACP reconnection reuse the same session. Unsupported reconnection defers the change until the next start, and a failed reconnect keeps the previous applied revision active until retry.

Task MCP

Kandev automatically injects a task-aware MCP server into supported agent sessions. You do not need to add it to the profile. It lets the active agent use current IDs and structured operations instead of inferring board state from text.

Names ending in _kandev are the canonical MCP protocol tool names. Some agent clients show or register a server-qualified alias instead. For example, a client may expose canonical step_complete_kandev as mcp__kandev__step_complete_kandev. That qualified form is client-specific, not a second tool or a universal name; use the form exposed by the active client.

Task tools use normal client discovery. When step_complete_kandev is required but is not already visible, the agent should search the active tool catalog for its canonical name. Kandev does not request eager loading through client-specific metadata.

create_task_kandev advertises prompt for instructions delivered to a newly started agent. Older callers may still send description when prompt is absent, but sending both is an error; the compatibility name is intentionally omitted from the advertised schema.

Native rich output

Task and Office agents can call show_rich_output_kandev when a workspace file, trend, comparison, or small metric group is materially clearer as a native presentation than as prose. The injected agent context requires this tool when the user explicitly asks for a chart, graph, plot, or file preview and suitable data is available. Prefer plain text or Markdown for ordinary answers. Small row-and-column comparisons should remain Markdown tables; native tables would duplicate that capability while adding another layout and accessibility contract.

Version 1 accepts a title, an optional description, and one to four ordered blocks:

• file references a task-workspace-relative path. It can include an optional repository discriminator, title, caption, and MIME type. Kandev never accepts absolute paths, traversal, URLs, data URIs, or inline file bytes.
• chart renders a line or bar chart and includes a plain-text summary for nonvisual interpretation. Data can be supplied in either of two ways:
  • Inline labels plus 1 to 4 series, with one finite numeric or null value per label.
  • A csv descriptor with a workspace-relative .csv path, optional repo, exact x_column, and 1 to 4 numeric series column mappings. Kandev reads 1 to 100 rows in file order. Empty numeric cells become gaps.
• metrics renders 1 to 6 plain-text label/value pairs with optional details.

Kandev renders visible x/y values and automatically shortens ISO date/time labels, large numbers, and long categories on the axes. Tooltips retain the original x label and full values. Give every series a clear label and include its unit when useful, for example p95 (ms). A one-series chart displays that label as an informational legend; a multi-series chart renders local keyboard- and touch-operable legend filters. Those filters change only the current view, not the persisted result or agent context.

The complete tool input is limited to 64 KiB. Titles are limited to 120 characters and the optional presentation description to 500 characters. Unknown fields and unsupported versions are rejected. Agents cannot choose HTML, Markdown, JavaScript, CSS, colors, animation, component names, or layout; Kandev owns those details so results remain consistent, accessible, and responsive.

{
  "version": 1,
  "title": "Build health",
  "description": "Latest local verification",
  "blocks": [
    {
      "type": "metrics",
      "items": [
        { "label": "Passed", "value": "38" },
        { "label": "Duration", "value": "12.4s", "detail": "Warm cache" }
      ]
    },
    {
      "type": "chart",
      "chart_type": "line",
      "title": "Runtime by run",
      "summary": "Runtime fell across the last five runs.",
      "labels": ["1", "2", "3", "4", "5"],
      "series": [
        { "label": "Runtime (s)", "values": [18.2, 16.4, 15.1, 13.8, 12.4] }
      ]
    },
    {
      "type": "file",
      "path": "reports/build.json",
      "title": "Raw report",
      "mime_type": "application/json"
    }
  ]
}

Use a CSV-backed line chart for a time series already present in the workspace:

{
  "version": 1,
  "title": "API latency",
  "blocks": [
    {
      "type": "chart",
      "chart_type": "line",
      "title": "p50 and p95 latency",
      "summary": "Tail latency fell across the recorded samples.",
      "csv": {
        "path": "reports/latency.csv",
        "x_column": "recorded_at",
        "series": [
          { "column": "p50_ms", "label": "p50 (ms)" },
          { "column": "p95_ms", "label": "p95 (ms)" }
        ]
      }
    }
  ]
}

The source file might contain:

recorded_at,p50_ms,p95_ms
2026-08-13T10:00:00Z,18.2,29.4
2026-08-14T10:00:00Z,16.4,25.1

Use the same CSV form for a categorical bar comparison:

{
  "version": 1,
  "title": "Traffic mix",
  "blocks": [
    {
      "type": "chart",
      "chart_type": "bar",
      "title": "Requests by route",
      "summary": "The API route carries most request volume.",
      "csv": {
        "path": "reports/routes.csv",
        "x_column": "route",
        "series": [{ "column": "requests", "label": "Requests" }]
      }
    }
  ]
}

CSV files must be UTF-8 text with one unique header row, no more than 256 KiB, and 1 to 100 data rows. Named columns must exist exactly. X values must be non-empty and at most 120 characters. Selected numeric cells must be finite numbers or empty; malformed rows and invalid values reject the tool call with the source row and column when available.

A completed presentation persists with the conversation and replays after a reload. For a CSV chart, Kandev resolves selected columns during the tool call and persists only bounded labels plus numeric or null values. It never stores the raw CSV and never re-reads it during replay, so later edits or workspace cleanup do not change the accepted chart.

File-preview bytes do not persist: Kandev fetches a referenced file only after the user selects Preview, and Open file uses the existing desktop or mobile file viewer. If the task workspace later disappears, the presentation remains while that file block reports that its preview is unavailable.

This is a Kandev-native MCP tool, not a portable MCP rich-content standard or an MCP App. Portable MCP content uses protocol-level content and resource types that multiple compatible hosts can interpret, usually with less host-specific visual control. MCP Apps let a server supply an interactive ui:// application that a supporting host runs in a sandbox; that enables richer interaction but introduces a larger trust, permissions, lifecycle, and compatibility surface. Neither path is implemented by this tool, and other MCP clients should not be expected to render its payload as Kandev does.

Task dependencies over MCP

create_task_kandev accepts blocked_by, a list of task IDs the new task must wait on. Two further tools manage links on an existing task:

• add_task_dependency_kandev with depends_on_task_id, and an optional task_id.
• remove_task_dependency_kandev with the same arguments. Removing a link that is not there succeeds.

In a task-bound session, task_id defaults to the agent's own task and may only name that task; use depends_on_task_id for the other end. The link is authorized against both tasks, and a link that would close a cycle is rejected with the offending path.

Use a dependency for ordering, a subtask for decomposition. Reaching for parent_id to express "do this one first" gets neither the start gate nor the chain: children run whenever they are started, and a parent's completion signal fires when all children reach any terminal state, including failure.

An agent decomposing a plan into ordered steps should create each step with blocked_by pointing at the previous one and leave start_agent at its default. A create that declares dependencies does not launch immediately: the requested start is recorded and fires once every predecessor has completed successfully, so three chained creates produce a chain rather than three agents in the same repository at once. Pass start_when_unblocked: false to create the links with no launch intent at all. With no blocked_by, start_when_unblocked records nothing and the task starts or does not start purely per start_agent.

Only success resolves a link. A predecessor that fails or is cancelled leaves its dependents blocked with a reason naming it, and Kandev does not retry it or drop the link on its own.

Starting a chain step by any other means consumes its recorded start, so the gate cannot fire a second session on a task that is already running. A start that fails keeps the intent, and preparing a workspace without launching an agent does not consume it.

While a step is still waiting, update_task_kandev accepts deferred_launch_prompt to replace the prompt it will launch with. Use it when the brief written at creation time has gone stale. The rest of the recorded launch (agent profile, executor) is preserved. Once the task has started the update is rejected, because nothing would read the new prompt; send the new context with message_task_kandev instead.

Autopilot tasks and MCP profiles

Task creation accepts one optional boolean:

mcp.WithBoolean(
    "autopilot",
    mcp.Description(
        "Start this task in autopilot mode. Default: false. The value is fixed at creation and is not inherited by subtasks. The agent does not ask the user directly; it asks its direct parent only for critical decisions.",
    ),
),

The value defaults to false. It is fixed when the task is created and is not copied to a subtask. The task record is the source of truth after creation; a later task update cannot switch the prompt or MCP tools between normal and autopilot behavior.

The top-level task dialog does not expose this option. The subtask dialog has a compact Autopilot switch with help text, but the value remains fixed after the subtask is created.

Kandev builds the task MCP server from a backend-owned profile. The base surfaces are kanban-task, office-task, configuration, and external. Optional capability groups, such as task titles, provider automation, user questions, and parent questions, are added or removed from that base profile. This keeps tool discovery small and makes a context change atomic.

For a Kanban task, normal sessions receive ask_user_question_kandev. An autopilot child receives ask_parent_question_kandev instead. An autopilot root receives neither question tool. Kandev never registers both question tools for one task session. Office sessions use their smaller skill/CLI surface and do not receive Kanban task-creation tools.

An autopilot child should ask its parent only when a decision blocks useful progress. ask_parent_question_kandev returns a question_id immediately; the child turn then ends. The parent receives a durable question message and answers with message_task_kandev using the child task ID and reply_to_question_id. The child stays in the waiting-for-input state until the correlated answer arrives, so the sidebar shows the normal question indicator during the wait.

Create idempotency with external_id

A caller that cannot tell whether an earlier create_task_kandev call (or POST /api/v1/tasks) actually landed (a crash before recording the response or a webhook redelivery) can pass an external_id and retry safely instead of guessing. external_id is an opaque, caller-chosen string, case-sensitive and byte-exact, unique per workspace: two workspaces can each hold their own task for the same value, but a second create for a value already held in the same workspace never makes a second task there. It is validated and trimmed like other free-text fields; a value that is empty after trimming is treated as if the field were omitted.

Every create response from both the MCP tool result and the REST response body always carries two additional fields, whether or not the request included an external_id:

• deduplicated: true when the returned task already existed for that identity, false when this call created it.
• creation_complete: false only when the returned task is an existing one whose own create had not finished when observed and may still be running (it is not proof the other create is still alive; it may have crashed). Every other outcome reports true.

Do not react to creation_complete: false by releasing the identity and retrying. The other create may still be doing required work; releasing it out from under that work can produce two tasks for the same identity. creation_complete: false means "ask again later," not "safe to force." An operator who has independently confirmed a create is abandoned (not merely slow) can free its identity with DELETE /api/v1/workspaces/:workspace_id/tasks/by-external-id?external_id=..., which returns 204 and leaves the task itself untouched. GET the same path to look up the task currently holding an identity, including one still unsettled, without creating anything; it returns 404 when nothing holds it.

Deleting or archiving the task that holds an identity does not carry the identity forward: archiving leaves it in place, but deleting the task frees the identity for reuse by a later create. external_id cannot be changed after creation; update requests that include it leave the task's identity untouched. The WebSocket task.create action and the plugin host's Tasks().Create do not accept external_id; use create_task_kandev or POST /api/v1/tasks for idempotent creates.

A task session currently registers these tool groups:

When Settings → General → Task Actions → Agent-generated task titles is enabled (the default; an explicitly saved off value remains off), a task-mode session for a newly created task or subtask can expose set_task_title_kandev. The first eligible session to launch atomically claims the handoff and is prompted to call it before any other work, even though the task already has a provisional title. Use a short title phrase targeting about six words in sentence case rather than a sentence or progress update. The tool is omitted for ordinary tasks, tasks created while the setting was disabled, config sessions, Office sessions, and every later session on the task, even if the owner fails before renaming it. A human rename wins if it happens first; a late owner call returns title_not_pending, while a non-owner call returns title_not_owner, without changing the title.

The same setting applies to ordinary Quick Chat. Quick Chat keeps its agent-and-chat-number label until the owner receives the first user request, then the owner can set a more useful title. The owner keeps the title capability while the title is pending, so a later request can retry after an ignored or failed call. Configuration Chat and Quick Terminal do not expose this capability.

When the owner accepts a generated title, Kandev also updates the names of the task's Kandev-managed branches from that final title and refreshes the session's branch snapshots. This is evaluated per repository: a repository opened from an existing checkout branch (including a GitHub PR) is preserved, as is every Local/Local PC checkout. A branch manually selected before the title call is preserved. If one managed repository cannot be renamed or its snapshot cannot be persisted, the title remains accepted and the response reports the successful, preserved, and failed branch outcomes separately.

Task identity is injected for operations that require it. Workspace, parent/subtask, executor, and task-state rules still apply.

Provider-scoped review automation tools

Task-mode review automation tools follow the providers attached to the task's repositories. Kandev computes their union when the session launches or resumes:

Adding a repository source successfully to an idle task can update the live session's task MCP tool list after materialization. If live refresh is temporarily unavailable, the source attachment remains committed and the next launch or resume reconciles the tool list. Tool discovery only describes the available surface; backend authorization and task/provider validation remain authoritative for every call. The existing automation request and response payloads are unchanged.

spawn_session_kandev creates a named sibling session on the current task by default and can target another task in the same workspace. message_task_kandev can address a task's primary session or an explicit session ID: a running agent receives queued input, an idle/created session can be started, and a failed or cancelled session rejects the message.

Without session_id the message goes to the task's primary session. If that primary is cancelled or failed, Kandev falls back to the newest session on the task that can still take a message, so a task with a live session stays reachable after its primary was stopped. A session named explicitly by session_id is never redirected. When every session is terminal the call fails and names spawn_session_kandev, which is the way to give the task a new session.

A same-task message requires the sibling's session ID. Normal messages can cross workspaces when the sender knows the full task ID. Delivery to a running session is queued by default. When a direct child must abandon its current approach and receive replacement work now, its parent should use message_task_kandev with delivery_mode: "interrupt"; another sender receives a hard error rather than a silent downgrade, and a request that cannot dispatch safely remains queued.

Use stop_task_kandev only when the direct child should halt without a replacement prompt. It has no session selector: one call gracefully stops every execution Kandev still observes as live across the child's active sessions, including non-primary sessions. Accepted sessions become CANCELLED before runtime teardown is scheduled. status: "stopped" confirms logical cancellation and asynchronous teardown, not operating-system process exit; a child with no live execution returns the idempotent status: "not_running" without changing task or session state.

After an accepted stop, Kandev attempts to move an unarchived, non-Office task from IN_PROGRESS or SCHEDULING to REVIEW; other task states are preserved. Worktrees, task environments, commits, task records, descendants, and queued messages remain available, and the task can be started again later.

add_workspace_sources_kandev adds one or more sources to an idle task and defaults task_id to the current task. A task may also target its same-workspace direct child; Kandev verifies the calling task and session on the backend, so agents cannot provide or override that provenance. Its sources input accepts the same atomic mixed batch as the Files panel: repository sources use exactly one saved repository ID, local Git path, or remote repository locator plus branch fields; folder sources use a local path and optional display name. Repository sources work on Worktree, Local/Local PC, Local Docker, SSH, and Sprites; folders work only on Worktree and Local/Local PC. The target must be repository-backed and have no active turn or tool call. Exact normalized retries are idempotent; contradictory duplicates, unsupported, or failed sources roll back the batch.

add_branch_to_task_kandev is the Worktree-only compatibility path for adding one repository/branch during an active agent turn. It creates the worktree as a sibling under the task directory, promotes the persisted Files root to that parent, and rescans it without restarting the agent, terminals, or workspace processes. The response returns worktree_path (the exact new repository location), task_workspace_path (the Files root), and agent_cwd_changed: false; deferred pre-launch materialization omits both paths. The original repository stays a separate Git worktree, so the sibling is not reported as an embedded repository or untracked files by its Git status. Use add_workspace_sources_kandev for mixed batch attachments to an idle task. update_repository_base_branch_kandev changes the base used for Kandev's diff, not a pull request's target branch.

The HTTP equivalent is POST /api/v1/tasks/:id/workspace-sources, with { "sources": [...] }. An exact normalized retry succeeds as a no-op. It returns 400 for invalid input, 404 for a missing task/source outside the workspace, 409 for contradictory duplicates or an active task, and 422 when materialization or executor capability fails. Successful adoption publishes task.updated and session.workspace_sources.updated; clients should refresh their Files and repository state from those updates.

step_complete_kandev is registered and discoverable in every task-mode session, and in Office sessions per ADR 0015. Kandev includes its completion instruction, and acts on its signal, only on steps whose auto-advance action explicitly requires that signal: on Kanban boards this is opt-in per step, while office-default's work step ships with the requirement on. A user message arriving before transition can cancel that automatic move.

When create_task_kandev.repositories[].repository_url is a canonical GitHub pull request URL or a GitLab merge request URL on the configured host, Kandev resolves the contribution before creating the task. The contribution must still be open, have a valid source branch and head commit, and permit the target project to contribute; Kandev keeps the target repository as origin, fetches the exact source commit, and routes commits to the contributor's existing source branch. The existing pull request or merge request is associated with the task and reused for later changes, so Kandev does not open a duplicate. Provider-authored title, description, comments, and diff content are not copied into trusted task context. Configure the task's Git credentials as described in task Git credentials; Kandev runs a write preflight before starting the agent.

The task server runs inside agentctl's local runtime boundary. Its MCP routes do not use a separate bearer token. Do not expose agentctl ports; rely on the executor's process/network isolation and Kandev's session scoping.

$KANDEV_CLI kandev projects list

$KANDEV_CLI kandev projects create \
  --name "Payments" \
  --description "Payment services and checkout" \
  --repository "https://github.com/acme/payments" \
  --repository "/workspace/checkout"

$KANDEV_CLI kandev task create \
  --title "Add payment retry policy" \
  --project "$PROJECT_ID" \
  --assignee "$AGENT_ID"

http://127.0.0.1:<backend-port>/mcp

{
  "shared_prompts": [
    { "name": "code-review", "builtin": true, "content_bytes": 1234 }
  ],
  "total": 1
}

{ "name": "code-review" }

{
  "workspace_id": "optional-workspace-uuid",
  "created_since": "2026-08-01T00:00:00Z",
  "limit": 50
}

{
  "pending_id": "bundle-uuid",
  "answers": [
    { "question_id": "q1", "selected_options": ["opt-a"], "custom_text": "" }
  ]
}

{
  "task_id": "task-uuid",
  "session_id": "optional-session-uuid"
}

{
  "task_id": "task-uuid",
  "session_id": "session-uuid",
  "request_id": "kandev-request-uuid",
  "pending_id": "provider-pending-id",
  "option_id": "allow-once"
}

External MCP security boundary

The /mcp, /mcp/sse, and /mcp/message routes are mounted through externalMCPAuthMiddleware. With authentication disabled, they remain open for the current single-user behavior. When authentication is enabled, external clients must provide a personal access token; an already-authenticated browser session may also pass the same middleware. This is separate from task-mode MCP, which runs inside the agentctl session boundary.

Permission discovery and resolution use the same task ownership checks as other task reads. A PAT has only its owning user's scope; administrator role does not grant access to another user's workspace. Unknown and unauthorized task/session IDs return the same not-found result.

• Bind the backend to loopback for a local single-user install.
• For remote use, place the whole backend behind a VPN, firewall, or authenticated TLS reverse proxy.
• Do not publish the MCP routes or backend port directly to the internet.
• Ensure the proxy protects both Streamable HTTP and SSE/message paths and permits long-lived requests.
• Scope integration, Git, and agent credentials for the damage an unattended client could cause.

Troubleshooting

• No scheduled run: confirm the cron expression is valid five-field or @-shorthand text and the automation/trigger is enabled; a schedule fires at its next occurrence after creation, not immediately.
• No GitHub push or CI runs: connect a workspace GitHub App whose installation is subscribed to push/check_run events, reinstall a pre-existing App so it receives them, and select explicit repositories (an empty repository list is not evaluated).
• Scheduled run happened as well as a PR run: clear the schedule expression. The two stored triggers fire independently.
• No GitHub PR runs: connect GitHub and select explicit repositories; All repos currently evaluates none.
• Run fails before a task starts: select valid non-passthrough agent and non-local executor profiles, and add/select a repository.
• Run fails on permission: an automation run cannot answer prompts. Use a safely constrained profile that does not require one, or reply to the run afterward and let the agent continue.
• Webhook rejected or data is incomplete: check the exact automation ID, X-Webhook-Secret header, and enabled automation/trigger. Bodies over 1 MiB are not rejected; the suffix is silently discarded, so inspect the retained trigger data.
• Missing template data: inspect run trigger data and the dot path; unresolved placeholders are intentionally removed.
• Task MCP tool missing: confirm this is a Kandev task session, the agent supports the injection strategy, and the operation belongs to task rather than external mode.
• One agent did not load MCP tools: inspect that session's toolbar report. A delivered/unverified row is evidence that ACP or passthrough configuration reached the agent, not proof that the agent contacted the server. For deeper developer investigation, run acpdbg mcp-probe against the agent and inspect its JSONL.
• External client cannot stream: verify the base backend URL and configure the reverse proxy for both the selected MCP transport and long-lived requests.

Related: Tasks and workflows, Coordination, Agents and profiles, and Integrations.
